Fiberglass Sucker Rods
Unmatched Strength & Industry-First Technology

Our Series 300 fiberglass sucker rods offer the industry’s highest load handling capacity, as well as superior performance in severe corrosion environments.

This solution enables our customer partners to increase production without up-sizing beam unit equipment, helping to reduce capital expenditures. Learn why more customers are turning to our Series 300 high-flow fiberglass sucker rods, featuring the world’s only “high-flow” fitting for high-production wells. Our proprietary predictive failure system for end fittings, found on every fiberglass rod we produce, virtually eliminates fiberglass rod body failures.

Series 300 Fiberglass Sucker Rod
Increased oil production through custom string design
Reduced electricity and capital costs due to decreased beam unit requirements
Extended run life in challenging deviated wells, reducing lease operating expenses
Broad range of sizes from pony rods to 37.5′ rod lengths and diameters of 1″ or 1-1/4″
Operating temperatures up to 185°F; alternatively, opt for our high-temperature rods for conditions up to 285°F
Reliability backed by our 24-month warranty
Pair this technology with our Blaze® rod couplings to dramatically reduce friction and compression in your rod string design, while enabling longer downhole stroke and reducing polished rod load

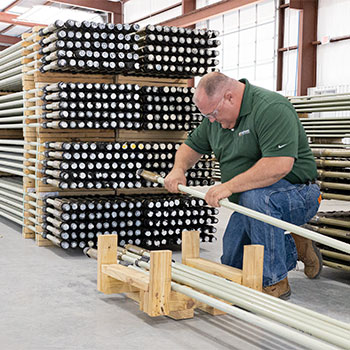

An Endurance Lift employee working with fiberglass sucker rods.
Series 300 HIFL Fiberglass Sucker Rod
Increased production with end fitting increasing flow area by over 40%
Over 60% reduced pressure drop across end fittings
Improve the effectiveness of your chemical program due to lower flow turbulence
Reduced stress loading on rod body
Hybrid 12-wedge design balances loading between wedges
50,000 psi working strength
1.8125” outer diameter
Standard 7/8” full size couplings; no diameter step between coupling and end fitting

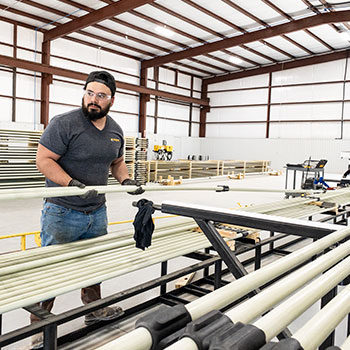

An Endurance Lift employee working with fiberglass sucker rods.
Physical Specifications
Nominal Rod Diameter (in.)

1.00

1.25
1.25
End Fitting Type

API

API
HIFL
End Fitting Type Diameter (in.)

1.626

2.000
1.8125
Rod Weight @ 37.5' W/O Couplings

30.71

48.27
46.50
Rod Body Area (in2)

0.755

1.190
1.190
Weight per Foot @ 37.5' W/O Couplings (lb./ft)

0.82

1.29
1.24
Operating Properties
Standard Maximum Operating Temperature (deg. F)

185

185
185
High-Temperature Maximum Operating Temp. (deg. F)

285

285
285
Maximum Working Strength (psi)

50,000

50,000
50,000
Maximum One Time Pull Load (lbs force)

50,000

80,000
65,000

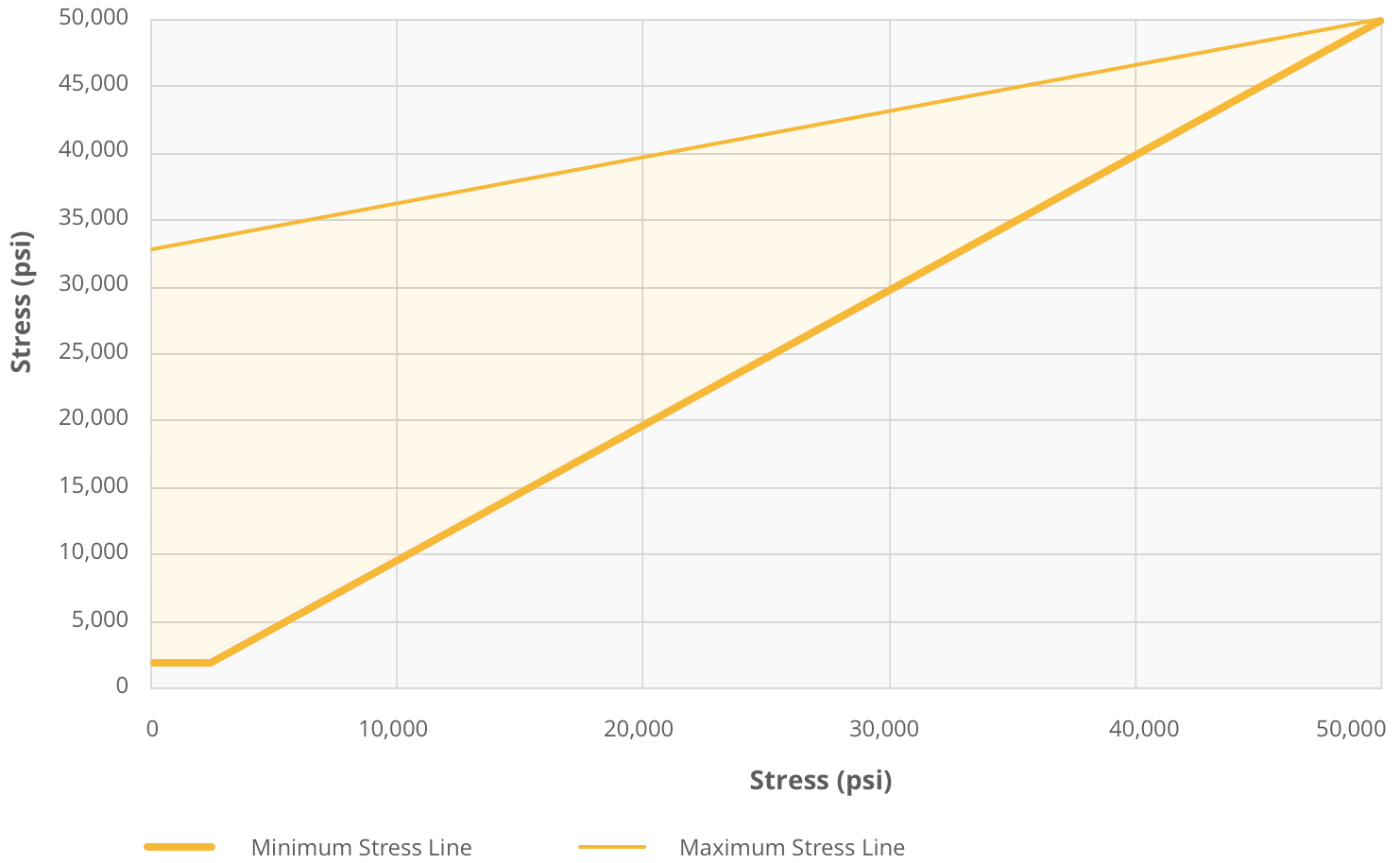

Allowable Stress Range Diagram
fiberglass sucker rod performance
