The Patented and Proven Guardian™ Gas and Sand Separator and the Guardian™ Triple Bypass Tubing Anchor Catcher
Gas interference, high sand content, and poor pump fillage in rod lift operations can lead to production shutdowns, costly workover operations, and loss of production revenue.
Endurance Lift, the leader in artificial lift technology, has two proven solutions for rod lift gas and sand separation: the patented Guardian™ Gas and Sand Separator* and the Guardian™ Triple Bypass Tubing Anchor Catcher (TAC).
The Guardian™ Gas and Sand Separator
The patented* Guardian™ Gas and Sand Separator was invented by Endurance Lift’s own Downhole Rod Pumps Product Line Director, Don Crane. Proven to deliver superior gas and sand separation, this system achieves significant improvements in pump run life – in some cases, over 10 times – setting a new standard for rod lift runtime and pump fillage in wells with high concentrations of gas and sand.
The Guardian Gas and Sand Separator features premium alloy construction and a simple design using no moving parts. Unlike other “one and done” separators, the Guardian can be tested, field-cleaned, redressed, and repeatedly reused, making it the most cost-effective separation tool available to the market.
Key Benefits of the Guardian™ Gas and Sand Separator
- Field-proven performance in over 1,600 rod lift installations
- Largest possible gas separation chamber area creates low velocity, providing for optimal separation
- 18+ square inches of window area, allowing for efficient fluid intake and gas bubble exit
- High-velocity sand separation chamber directs solids past the shroud into extension joints, minimizing turbulence and emulsion
- Internal chamber velocity conforms to production tubing – no resizing required
- Simple, modular design, incorporating premium alloys, provides for safe and easy installation, retrieval, cleaning, and reuse
- Proven effective in the curve of horizontal wells
*patent number 002155.00038
The Guardian™ Gas and Sand Separator Delivers a 10X Increase in Run Life in the Bakken
An operator in the Bakken utilized the Guardian™ Gas and Sand Separator to address chronically short rod lift system run times and poor pump fillage. After installing the Guardian, average runtimes increased from 30 days to 318 days, an improvement of over 10 times. During operation, the pump maintained 92% fillage, and upon retrieval, all three mud joints were full.
The system was field-cleaned, redressed, and immediately reinstalled.
Read Field Report 120 for more information.

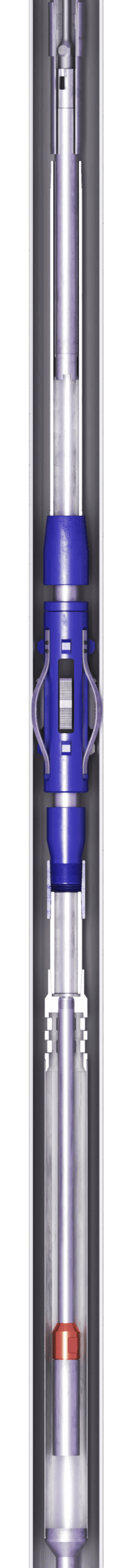

The Guardian™ Triple Bypass Tubing Anchor Catcher (TAC)
The Guardian™ Triple Bypass Tubing Anchor Catcher (TAC) is designed to work in conjunction with the Guardian Gas and Sand Separator, eliminating flow restrictions and gas recirculation to maximize pump fillage, production output, and equipment run times.
Key Benefits of the Guardian™ Triple Bypass TAC
- Field-proven performance in over 600 rod lift installations
- Provides 68% greater total flow area vs. conventional tubing anchors, by allowing gas flow through and around the anchor. The result is a significant improvement in gas handling and optimized pump fillage
- Even better gas handling can be achieved by installing recommended short-hole anchors
- Prevents re-entry of separated gas by maintaining unrestricted annular flow
- Incorporates a modular, durable design that allows for safe handling as an independent unit
- Compatible with all major tubing anchor designs and wellbore configurations
- Optional integrated capillary injection kit for efficient use of production-enhancing chemicals. The unique design of the Guardian Triple Bypass TAC ensures that the capillary line is not damaged while setting the tubing anchor catcher
The Guardian™ Gas and Sand Separator & Triple Bypass TAC Yield Increased Production in the Bakken
A major Bakken operating company was seeking a more effective downhole separation system to improve performance across its reciprocating rod-lifted wells. The wells’ existing bottom-hole assemblies (BHA) were not delivering consistent results in terms of fillage, fluid production, or gas recovery.
These issues were effectively addressed by installing the Guardian Gas and Sand Separator, combined with the Guardian Triple Bypass TAC. This tool combination delivered increased pump fillage, from 84% to 94%, total fluids from 120 to 174 BFPD, and gas output from 189 to 316 Mscf/d.
Read Field Report 121 for more information.
Run Longer and Produce More in High Gas & Sand Rod Lift Wells
Endurance Lift’s Guardian™ Gas and Sand Separator is a proven solution for wells with high concentrations of gas and sand. This patented tool, combined with our innovative Triple Bypass TAC, delivers unequaled gas and sand separation, improved pump fillage, and dramatically longer run times.
Employing a modular design that combines premium materials and features with no moving parts, the Guardian can be easily cleaned, redressed, and reused multiple times, providing unmatched value and delivering on our promise to operators: Run Longer. Produce More.™
Email our rod lift experts at [email protected] or call 281-705-1341 for more information.
In our recent webinar, Rod Lift: Innovative Solutions for Downhole Gas & Sand Separation, Don Crane, the inventor of the patented Guardian™ Gas and Sand Separator and Guardian Triple Bypass, provided in-depth information on this proven separation system. To access this webinar, click here (link to: https://youtu.be/RhncA48ajHY).
